Rotary Drum Cooler for Steel Slags, Calcined Coke, Needle Coke, Graphite Anode Materials and other bulk materials

SONGLING's rotary drum cooler has been applied in cooling of Calcined coke, Petroleum coke, Needle coke, Magnesium reduction, Steel slags, Manganese reduction, Graphite anode materials, Lithium carbonate, DRI, etc.

Keywords:

Material Cooling System

china Rotary Drum Cooler

quality Rotary Drum Cooler

best Rotary Drum Cooler

Classification:

Material Cooling System

inquiry@qdsongling.com

info@qdsongling.com

Request quote

Rotary Drum Cooler for Calcined Coke, Semicoke, Needle Coke, Graphite anode materials, etc.

The Rotary drum cooler is invented by Chinese (created in China). SONGLING has a number of patented technologies in rotary drum cooler. SONGLING's rotary drum cooler has been applied in cooling of Calcined coke, Semicoke, Needle coke, Magnesium reduction, Steel slags, Manganese reduction, Graphite anode materials, etc.

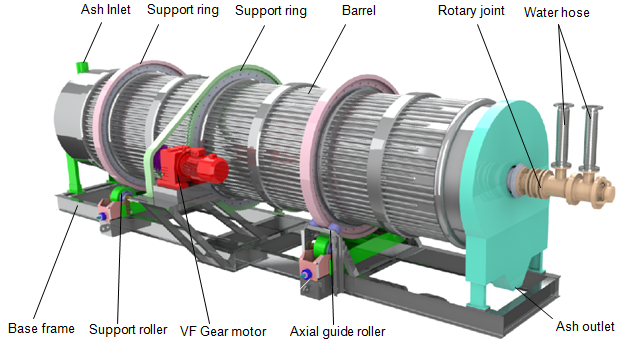

Rotary drum cooler is a new type cooler used for cooling bulk materials. It consists of rotating drum, material inlet section, material outlet section, cooling water system, drive mechanism, etc. The drum consists of an outside cylinder with membrane pipes and an inside cylinder with tubes. There is designed with guide fins inside the drum for guiding the materials to cooler outlet and transfer the heat from the hot materials to cooling water. As hot materials enter the bottom of the drum through the inlet, ash starts to accumulate around the inlet till equilibrium is established between the material gravity and the resistance of the materials in the barrel. As the drum rotates, the material resistance is reduced inducing more bottom materials into the drum. The material flow is a linear function of the rotating speed. The faster the drum rotates, the higher the material flow is. In the process of material moving, heat exchange occurs between material and cooling water.

Features

Excellent capacity control

Insensitive to material size and characteristics

Highly reliable and efficient cooling

Patented and reliable seal design

Patented roller support design

Patented water inlet station

Easy on-line check and maintenance

Very Low auxiliary power consumption

Working Principle

Solids enter the rotating barrel from one side and are cooled by spiral and longitudinal fins inside the barrel. The spiral fins lit and convey the solids continuously to the barrel exit. There is no mechanical pushing force on the solids and therefore there is little erosion on the fins and barrel. The solid flow increases with the barrel rotating speed and decreases to zero when the barrel stops rotating. Ash cooling capacity is automatically adjusted by barrel rotating speed. The barrel rotating speed is controlled by a variable frequency motor which is DCS-controlled depending on bed pressure.

The Rotary Drum Cooler, a remarkable invention from China, has made significant strides in various industries. SONGLING, with its multiple patented technologies, has been at the forefront of this development.

This cooler is designed for cooling bulk materials such as Calcined coke, Semicoke, Needle coke, and Graphite anode materials. It is also applicable in processes like Magnesium reduction, Steel slags, and Manganese reduction.

The structure of the Rotary Drum Cooler is comprehensive. Comprising a rotating drum, material inlet and outlet sections, a cooling water system, and a drive mechanism, it functions effectively. The drum's unique design, with an outside cylinder of membrane pipes and an inside cylinder of tubes along with guide fins, ensures efficient heat transfer from hot materials to cooling water.

The features of this cooler are impressive. It offers excellent capacity control and is insensitive to material size and characteristics. Its highly reliable and efficient cooling is a result of patented designs, including the seal design, roller support design, and water inlet station. It also allows for easy on - line check and maintenance with very low auxiliary power consumption.

The working principle is based on solids entering the rotating barrel and being cooled by fins. The spiral fins lift and convey the solids without mechanical pushing force, minimizing erosion. The solid flow is related to the barrel's rotating speed, which is DCS - controlled by a variable - frequency motor according to bed pressure, enabling automatic adjustment of ash cooling capacity.

Keywords: Drum cooler/Rotary drum cooler/Bulk material cooler/Bulk material cooling/Cooler for Reduced mineral slag/Cooler for Reduced magnesium slag/Cooler for Magnesium reduction/Cooler for Manganese reduction/Cooler for Rotary kiln/Cooler for Rotary hearth furnace /Graphite anode cooler/Calcined coke cooler/Petroleum coke cooler/Neecle coke cooler/Green coke cooler/Coke cooler/Steel slag cooler/Iron pellets cooler /Sponge iron cooler/Direct reduced iron cooler/DRI kiln cooler/Lithium ore cooler/Lithium carbonate cooler
